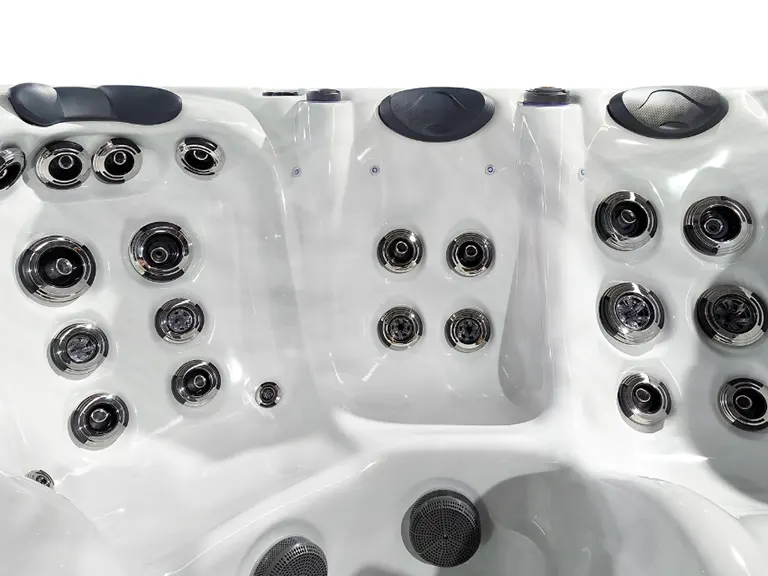

Platinum Helios swim spa in a garden setting, seen from abovePlatinum Helios swim spa seen from abovePlatinum Helios dual-zone swim spa, studio viewInterior of the Platinum Helios swim spa
Platinum SpasSwim spa

Platinum Helios.

Separate swim and spa zones for complete flexibility.

A dedicated River Jet swimming area and a separate five-person hydrotherapy zone, so the swim side stays ready for exercise while the spa side runs warmer for relaxation.

  • 5 peopleSpa zone
  • 53 jetsIn total
  • Two zonesRiver Jet swim system
  • 232.3 × 88.6 inFootprint, 59 in tall
Request pricingVisit the showroom
Pricing and availability on request. Questions? Call (561) 685-1315
  • 4 seats + 1 lounger
  • River Jet swim current
  • Ozone water care
  • Bluetooth audio
  • 240V dual-zone supply
Why the Helios

Two water experiences in one backyard system.

Choose the Helios when swimming and hydrotherapy need to happen on different terms. Its dual-zone design separates the exercise area from four upright seats and one lounger, giving the household more control over how each side is used.


  • A dedicated swim zone

    Train against the River Jet current in a separate body of water designed around swimming and aquatic exercise.

    River Jet

  • A separate hydrotherapy zone

    Four upright seats, one lounger and targeted jets create a warmer space for recovery, conversation and relaxation.

    5 people

  • Independent daily use

    Separate zones let the swim and spa sides support different routines without choosing one temperature for both.

    Two temperatures
Product details

Platinum Helios specifications.

Based on current North American manufacturer information. We reconfirm the specifications for your exact unit before site preparation, electrical work or delivery. Warranty is subject to manufacturer terms.

  • 59 in tall
  • 3,196 lb dry weight
  • 26,345 lb filled

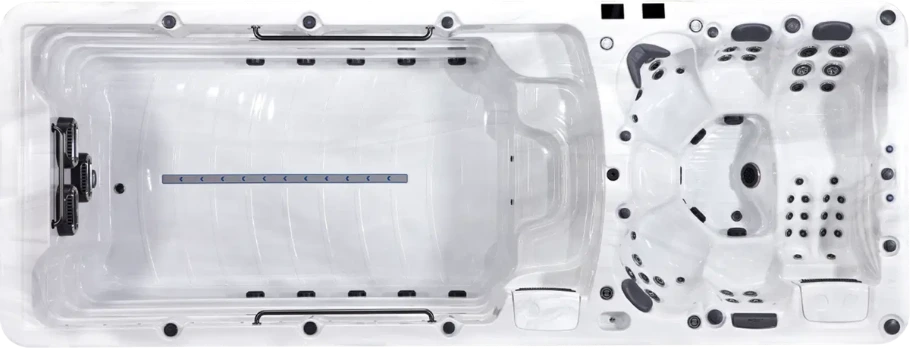

Platinum Helios seen from above: 232.3 inches long and 88.6 inches wide
Top view, outside dimensions
Size and build
Dimensions
232.3 × 88.6 × 59 in
Water capacity
2,448 gal swim + 324 gal spa
Dry weight
3,196 lb
Filled weight
26,345 lb
Shell
Aristech acrylic, 304 stainless frame
Swim and power
Swim system
River Jet System
Power supply
50 amp + 60 amp / 240V
Swim pumps
3 × 6 BHP / 3 HP continuous
Hydrotherapy pumps
2 × 5 BHP / 2 HP continuous
Circulation pumps
1 × 0.35 HP + 1 × 1 HP
Water care and comfort
Filtration
4 cartridge filters
Purification
Ozone water clarification
Heaters
2 × 5.5 kW
Insulation
Platinum Premium Shield
Controls
Spa Touch 2T, Wi-Fi optional
The essentials
Brand
Platinum Spas
Product type
Dual-zone swim spa
Seating
4 upright seats + 1 lounger
Audio
Bluetooth audio included
Warranty
Lifetime shell structure, up to 3 years on parts
The Platinum swim spa range

Compare it with the other three.

Four Platinum swim spas, from a compact swim-and-soak layout to split swim and spa zones. The same five details for each, side by side.

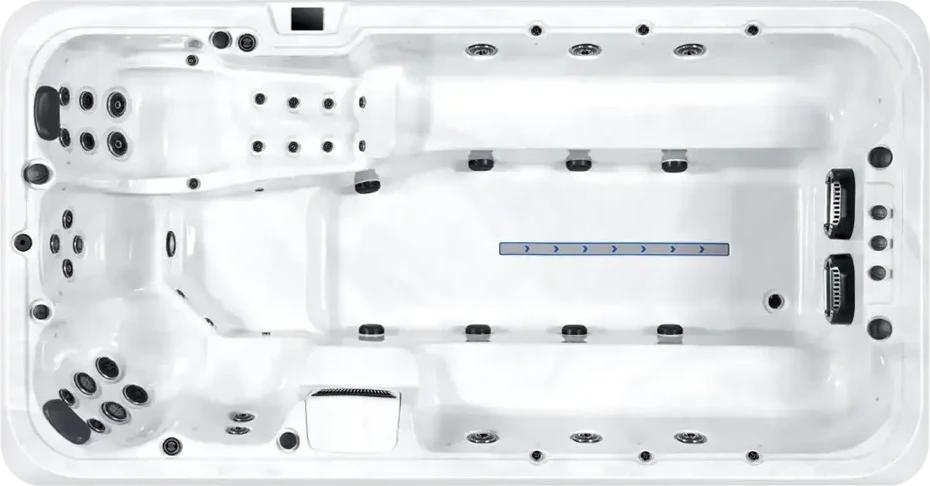

  • Platinum Titan swim spa seen from above
    Seats up to 10

    Platinum Titan

    Best for: family and shared use
    People
    Up to 10
    Jets
    38
    Layout
    Bench seating
    Length
    169 in
    Height
    47.5 in
    View the Titan

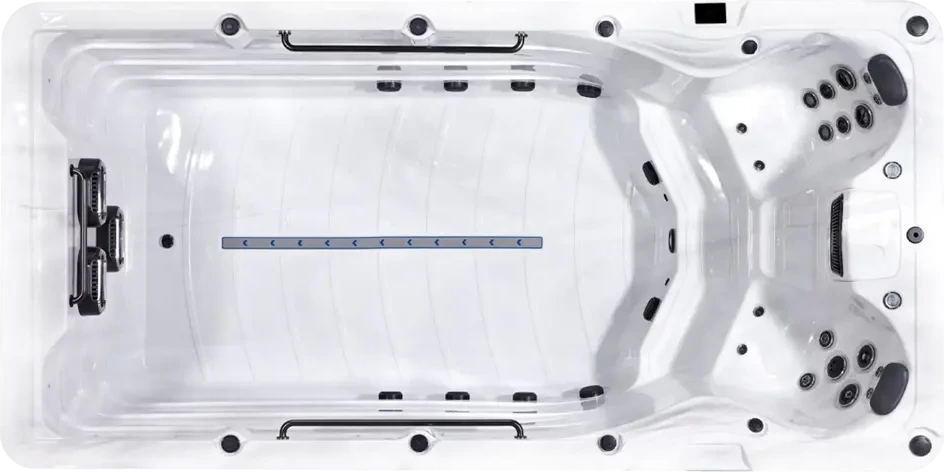

  • Platinum Eros swim spa seen from above
    Compact layout

    Platinum Eros

    Best for: one or two swimmers
    People
    2
    Jets
    22
    Layout
    Compact swim and soak
    Length
    177 in
    Height
    59 in
    View the Eros

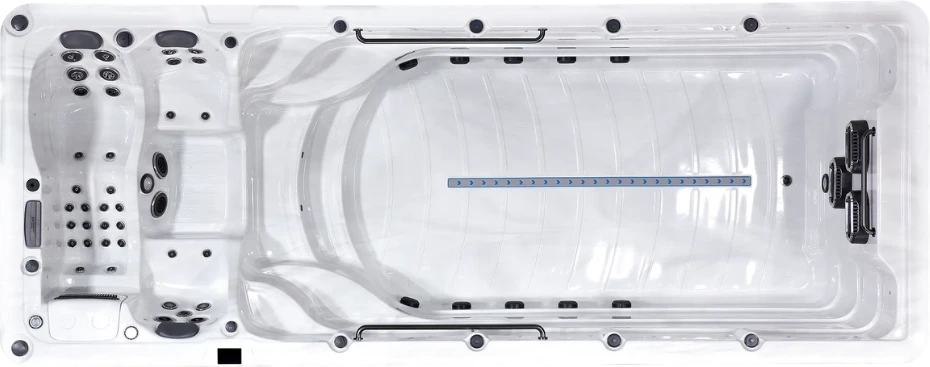

  • Platinum Zelus swim spa seen from above
    Seats + lounger

    Platinum Zelus

    Best for: swim training, up to three
    People
    3
    Jets
    42
    Layout
    2 seats and a lounger
    Length
    224 in
    Height
    59 in
    View the Zelus
  • Platinum Helios swim spa seen from above
    This model

    Platinum Helios

    Best for: separate swim and spa zones
    People
    5
    Jets
    53
    Layout
    Split swim and spa zones
    Length
    232 in
    Height
    59 in
    You are viewing this model
Plan the project

Prepare the space before delivery day.

A swim spa is a substantial installation. Our West Palm Beach team reviews access, foundation, electrical preparation and drainage with you before delivery is scheduled.

Ask about delivery

  • A level surface

    An engineered, level base designed for the filled weight of the swim spa.

    26,345 lb filled

  • Clear access

    A clear route for delivery, including lifting equipment where it is needed.

    232.3 in long

  • A plan for drainage

    Somewhere suitable to drain and refill when the water needs changing.

    Two separate zones

  • A dedicated power supply

    A dedicated electrical connection installed to the product documentation and local code.

    240V · 50 + 60 amp
Questions

Platinum Helios, answered.

Quick answers before you decide. Our team confirms the details for your property before anything is scheduled.

Ask our team
How many people can use the Platinum Helios?

The hydrotherapy zone is designed for five people, with four upright seats and one lounger. The separate swim zone supports swimming and exercise.

Is the Helios a dual-zone swim spa?

Yes. The Helios has two separate bodies of water: a River Jet swim zone and a five-person hydrotherapy zone.

Can the two zones run at different temperatures?

Yes. The swim and hydrotherapy zones are separate water environments, so each can be set for a different experience and temperature.

What electrical service does the Helios require?

The current US specification lists a 240V dual-zone configuration with 50 amp and 60 amp requirements. A qualified electrician must plan the final installation from the current product documentation.

What needs to be planned before delivery?

Engineered support for the filled weight, delivery access, lifting requirements where they apply, drainage, clearances and the dedicated electrical installation. Our team reviews each of these with you.

What warranty comes with the Helios?

The manufacturer lists lifetime cover on the shell structure and up to 3 years on parts, subject to its terms. We confirm the complete terms for your unit before you order.

Available from our West Palm Beach team

Interested in the Platinum Helios?

Ask about current availability, configuration, delivery planning and the preparation your property needs.

Request pricingVisit the showroom
Showroom
2550 Okeechobee Blvd, Unit G2
West Palm Beach, FL 33409
Hours
Mon 10 AM – 6 PM · Tue–Fri 9 AM – 6 PM
Sat 10 AM – 5 PM · Sun by appointment
Call us
(561) 685-1315
