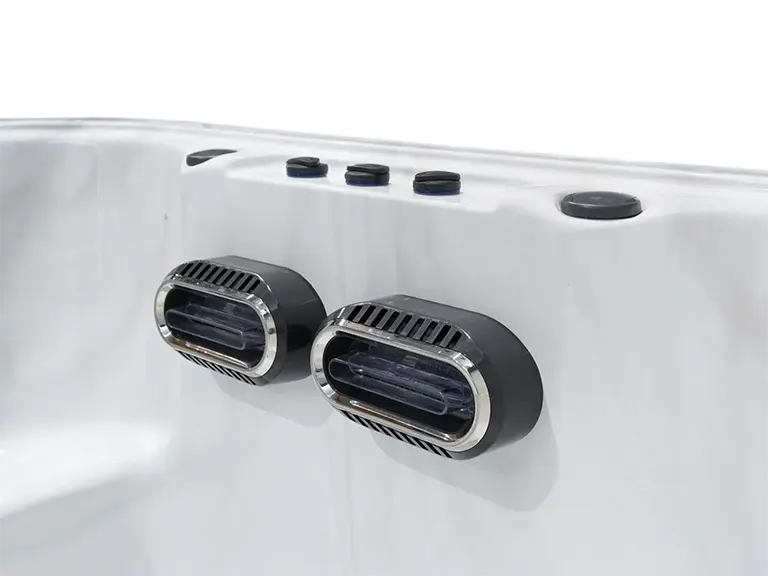

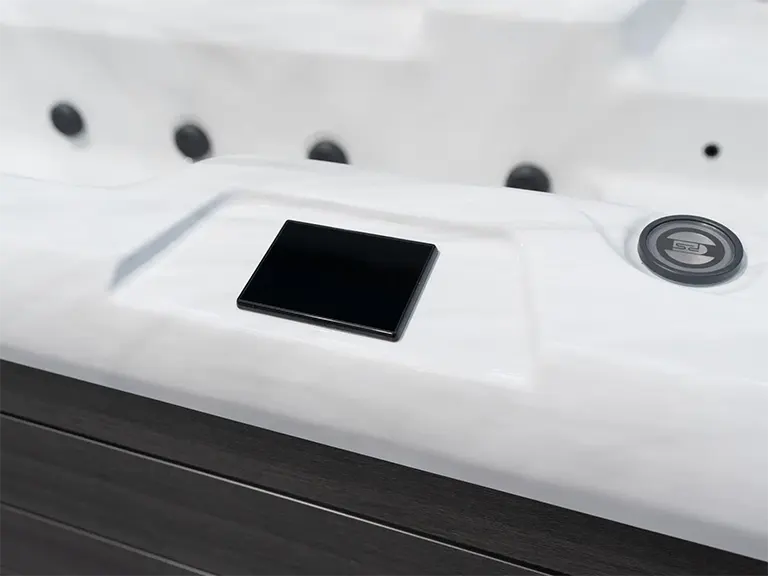

Platinum Titan swim spa on a garden patio, seen from abovePlatinum Titan swim spa seen from aboveTouch control panel on the Platinum Titan swim spaRiver Jet swim jets inside the Platinum Titan
Platinum SpasSwim spa

Platinum Titan.

More room for movement, relaxation and time together.

A River Jet swimming current and a spacious bench layout for up to ten people: nine seats, one lounger and 38 jets for exercise, low-impact movement and shared relaxation.

  • Up to 10People
  • 38 jetsHydrotherapy
  • River JetSwim system
  • 169 × 88.5 inFootprint, 47.5 in tall
Request pricingVisit the showroom
Pricing and availability on request. Questions? Call (561) 685-1315
  • 9 seats + 1 lounger
  • River Jet swim current
  • Ozone water care
  • Bluetooth audio
  • 240V, 60 amp
Why the Titan

A spacious swim spa for active households.

Choose the Titan when seating capacity and shared use matter as much as swimming. Its 169-inch length combines a generous bench layout with room for current-based exercise and hydrotherapy.


  • Swim and keep moving

    Use the River Jet current for swimming, resistance work and comfortable low-impact movement at home.

    River Jet

  • A social bench layout

    Nine seats and one lounger create room for family time, conversation and shared relaxation.

    Up to 10 people

  • Hydrotherapy after activity

    Thirty-eight jets support massage and recovery after swimming, training or a long day.

    38 jets
Product details

Platinum Titan specifications.

Based on current North American manufacturer information. We reconfirm the specifications for your exact unit before site preparation, electrical work or delivery. Warranty is subject to manufacturer terms.

  • 47.5 in tall
  • 2,028 lb dry weight
  • 1,109 US gal capacity
Platinum Titan seen from above: 169 inches long and 88.5 inches wide
Top view, outside dimensions
Size and build
Dimensions
169 × 88.5 × 47.5 in
Water capacity
1,109 US gal
Dry weight
2,028 lb
Filled weight
11,287 lb
Shell
Aristech acrylic, 304 stainless frame
Swim and power
Swim system
River Jet System
Power supply
60 amp / 240V
Swim pumps
2 × 6 BHP / 3 HP continuous
Hydrotherapy pumps
2 × 5 BHP / 2 HP continuous
Circulation pump
1 × 0.35 HP
Water care and comfort
Filtration
2 cartridge filters
Purification
Ozone water clarification
Heater
5.5 kW
Insulation
Platinum Premium Shield
Controls
Spa Touch 2T, Wi-Fi optional
The essentials
Brand
Platinum Spas
Product type
Single-zone swim spa
Seating
9 seats + 1 lounger
Audio
Bluetooth audio included
Warranty
Lifetime shell structure, up to 3 years on parts
The Platinum swim spa range

Compare it with the other three.

Four Platinum swim spas, from a compact swim-and-soak layout to split swim and spa zones. The same five details for each, side by side.

  • Platinum Titan swim spa seen from above
    This model

    Platinum Titan

    Best for: family and shared use
    People
    Up to 10
    Jets
    38
    Layout
    Bench seating
    Length
    169 in
    Height
    47.5 in
    You are viewing this model
  • Platinum Eros swim spa seen from above
    Compact layout

    Platinum Eros

    Best for: one or two swimmers
    People
    2
    Jets
    22
    Layout
    Compact swim and soak
    Length
    177 in
    Height
    59 in
    View the Eros
  • Platinum Zelus swim spa seen from above
    Seats + lounger

    Platinum Zelus

    Best for: swim training, up to three
    People
    3
    Jets
    42
    Layout
    2 seats and a lounger
    Length
    224 in
    Height
    59 in
    View the Zelus
  • Platinum Helios swim spa seen from above
    Two zones

    Platinum Helios

    Best for: separate swim and spa zones
    People
    5
    Jets
    53
    Layout
    Split swim and spa zones
    Length
    232 in
    Height
    59 in
    View the Helios
Plan the project

Prepare the space before delivery day.

A swim spa is a substantial installation. Our West Palm Beach team reviews access, foundation, electrical preparation and drainage with you before delivery is scheduled.

Ask about delivery

  • A level surface

    An engineered, level base designed for the filled weight of the swim spa.

    11,287 lb filled

  • Clear access

    A clear route for delivery, including lifting equipment where it is needed.

    88.5 in wide

  • A plan for drainage

    Somewhere suitable to drain and refill when the water needs changing.

    1,109 US gal

  • A dedicated power supply

    A dedicated electrical connection installed to the product documentation and local code.

    240V · 60 amp
Questions

Platinum Titan, answered.

Quick answers before you decide. Our team confirms the details for your property before anything is scheduled.

Ask our team
How many people can use the Platinum Titan?

The Titan is designed for up to ten people, with nine bench-style seats and one lounger.

Is the Titan a dual-zone swim spa?

No. The Titan uses one connected body of water for swimming, exercise, hydrotherapy and shared relaxation.

What electrical service does the Titan require?

The current US manufacturer specification lists a dedicated 60 amp, 240V power supply. Installation must follow the product documentation and local electrical code.

What needs to be planned before delivery?

Engineered support for the filled weight, delivery access, lifting requirements where they apply, drainage, clearances and the dedicated electrical installation. Our team reviews each of these with you.

What warranty comes with the Titan?

The manufacturer lists lifetime cover on the shell structure and up to 3 years on parts, subject to its terms. We confirm the complete terms for your unit before you order.

Available from our West Palm Beach team

Interested in the Platinum Titan?

Ask about current availability, configuration, delivery planning and the preparation your property needs.
